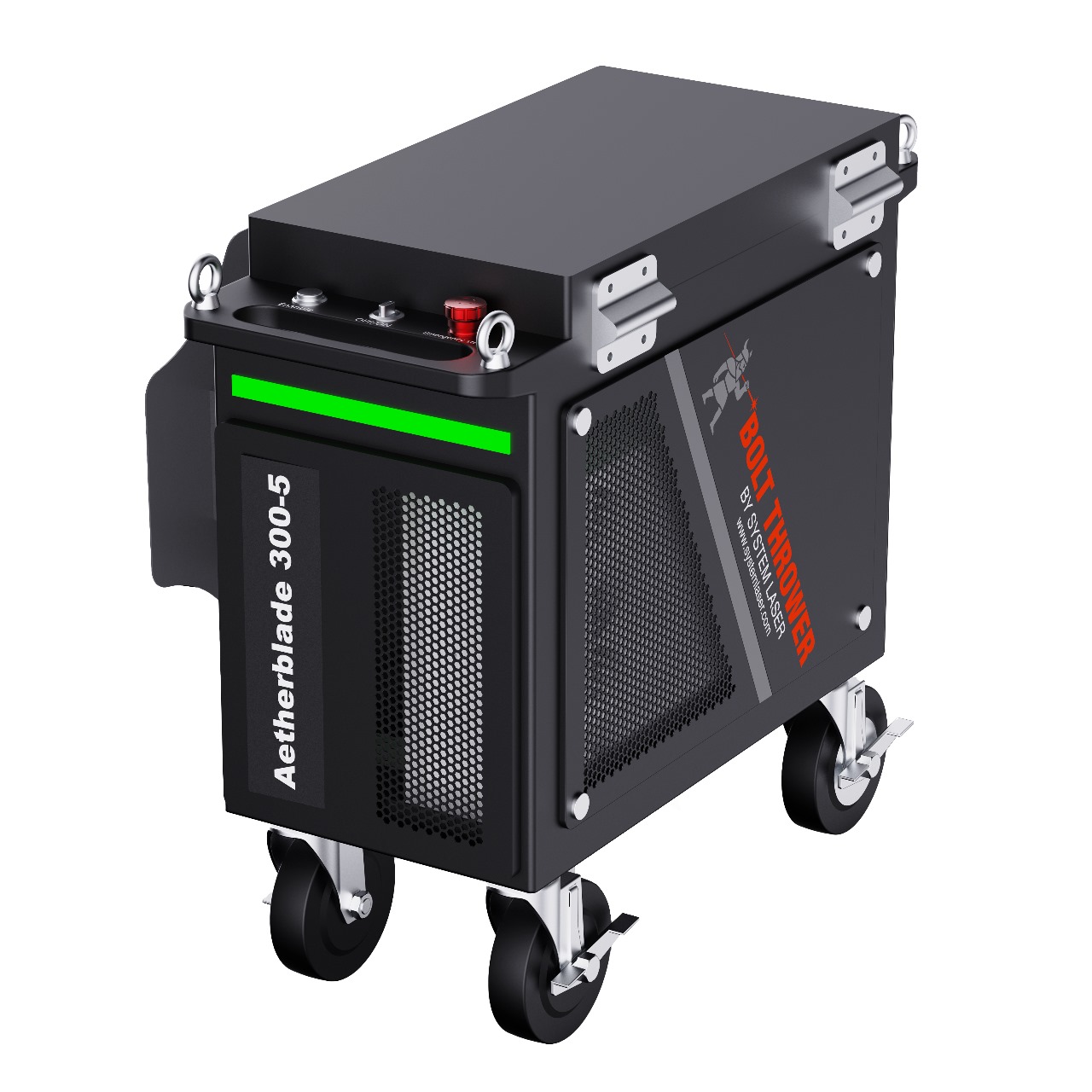

Aetherblade Series: State of the art, light weight, portable, highly versatile laser for shop & field applications.
The Aetherblade Series Air Cooled Pulsed Laser Cleaner delivers superior surface cleaning without substrate damage, powered by pulsed fiber technology. System Laser is backed by six decades of experience with global clients in manufacturing, aerospace, commercial, and industrial environments, ensuring real-world jobsite solutions. Designed to EN ISO 12100:2010, EN ISO 11553-1:2020, and EN 60204-1:2018, with FDA registration and EN 60825-1:2014 + A11:2021 compliance, Bolt Thrower Laser Equipment assures top-tier safety and reliable performance globally.

Contact To Order
Application Industries Advantages
Corrosion Removal Manufacturing Non Destructive
Paint Stripping Fabrication Reduced Waste Streams
Scale Removal Utility No Consumables
Degreasing Concrete Environmentally Friendly
Contaminant Removal Construction Precise
Biofilm Removal Marine Efficient
Soot & Smoke Removal Industrial Surface Texturing & Non Destructive Mode
Automotive
USA OEM MFG Integrators US Backed Support, Service & Training
Polishing Texturing Non Damage

Bolt Thrower
Aetherblade Air Cooled Pulsed Laser Series Specifications

Model Aetherblade 200-2 Aetherblade 200-5 Aetherblade 300-2 Aetherblade 300-5 Aetherblade 300-15
Laser Power 200 W single-mode / 2 mJ 200 W multi-mode / 5 mJ 300 W single-mode / 2 mJ 300 W multi-mode / 5 mJ 300 W multi-mode / 15 mJ
Beam Width X: 5 - 200 mm (0.2" - 7.87") / Y: 5 - 200 mm (0.2" - 7.87")
Pulse Frequency 20 kHz ~ 4000 kHz (adjustable)
Cooling Air-Cooled
Input Voltage 110 / 220 V AC ≤ 10%, 50 / 60 Hz
Power Consumption <900 W (Total) <1.5 KW (Total)
Laser Wavelength 1064 ± 10 nm
Cable Length 16 ft. (5 m) - custom lengths available
Dimensions (Main Unit) 23" x 10.5" x 19" (590 x 267 x 487 mm) 35.4" x 17.3" x 29.1" (900 × 440 x 740 mm)
Weight 79 lbs (36 kg)/td> 134.5 lbs (61 kg)
Input Current (FLA) ≈ 9-12 A @115 V • ≈ 5-7 A @ 230 V
Focal Depth 11.4" / 290 mm
Laser Safety Class Class IV
Scan Modes Dual-Axis Galvanometer / Linear Horizontal (Selectable, 12 Patterns)
Supply Air Pressure 87 - 116 PSI (0.6 - 0.8 MPa)
Remote Capable Yes
Operating Temperature 32°F - 104°F ( 0° C - 40° C)
Air Shield Lens Protector Yes
Power Range (Adjustable) 10% - 100%
Recommended (MOP) 13.6 A @ 110 V • 6.8 A @ 220 V
Contact To Order

Class IV laser cleaners are high-power devices that can cause severe eye and skin injuries or ignite flammable materials. Always wear laser safety goggles, follow strict operational protocols, and ensure proper training. Consult local regulations in your area for specific compliance requirements, including registration, safety programs, and permissible use, to ensure safe operation.
